Spyder Double Disc Drill - K-Hart Industries

A revolutionary new design and the latest disk opener technology. The agricultural world has been waiting a long time for this.

Outstanding ground following capability and narrower, safer transport widths.

Outfitted with K-Hart’s exclusive Model 8620 Gent undercut disc openers, this easy-to-pull drill provides ultra-low soil disturbance, excellent seed-to-soil contact, reduced hairpinning and lower fuel consumption for no-till farming.



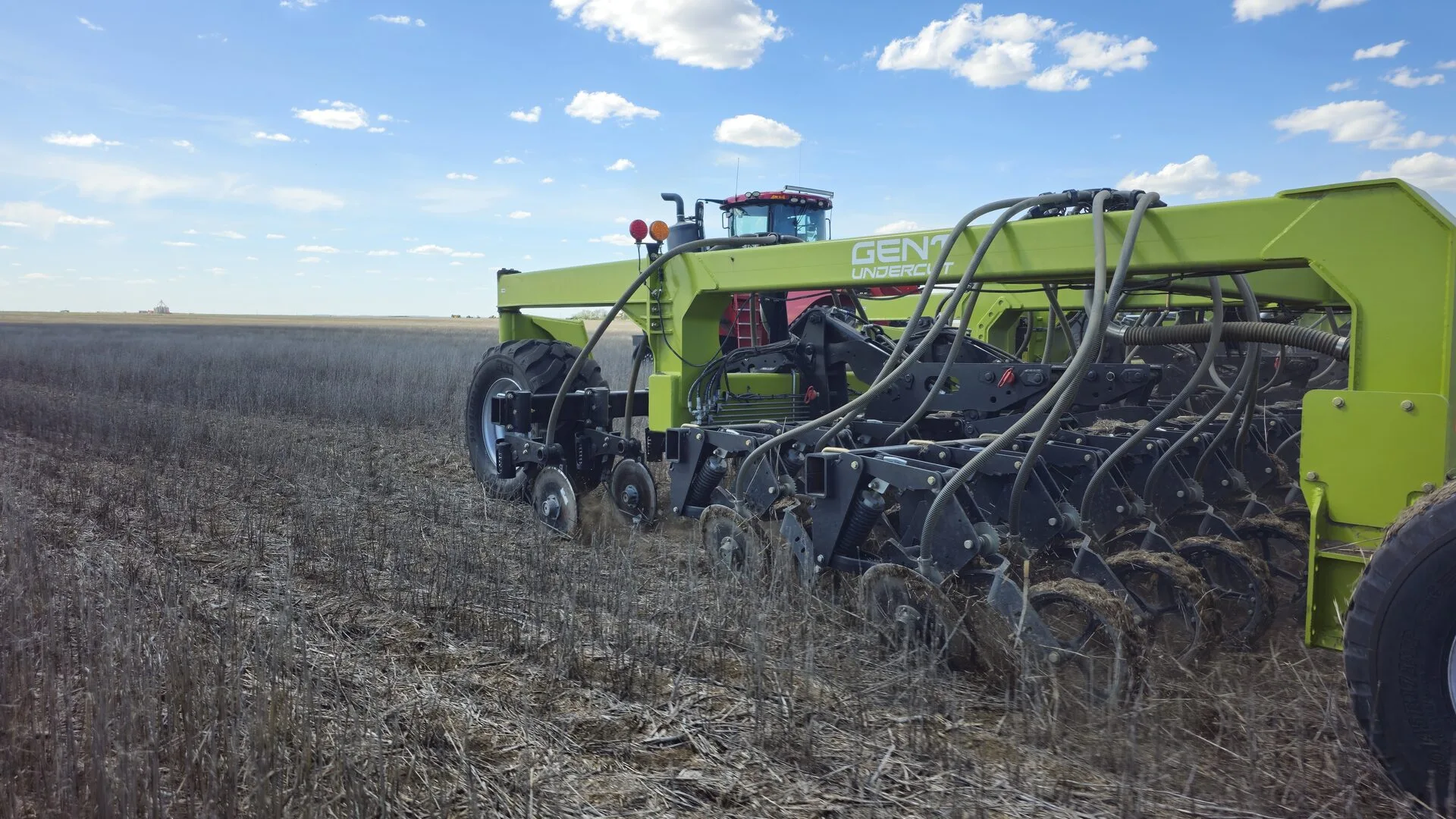

Improve Soil Quality

Residue left on the field protects the surface from sun and wind which helps retain moisture. Residue also interrupts water flow which reduces runoff.



Greater Yields

Continuous no-till farming creates higher-quality soil which improves crop yield. It also reduces the amount of carbon released.



Lower Fuel Cost

The Spyder is one of the easiest disc drills to pull. Some competitive single disc drills require substantially more fuel to pull.

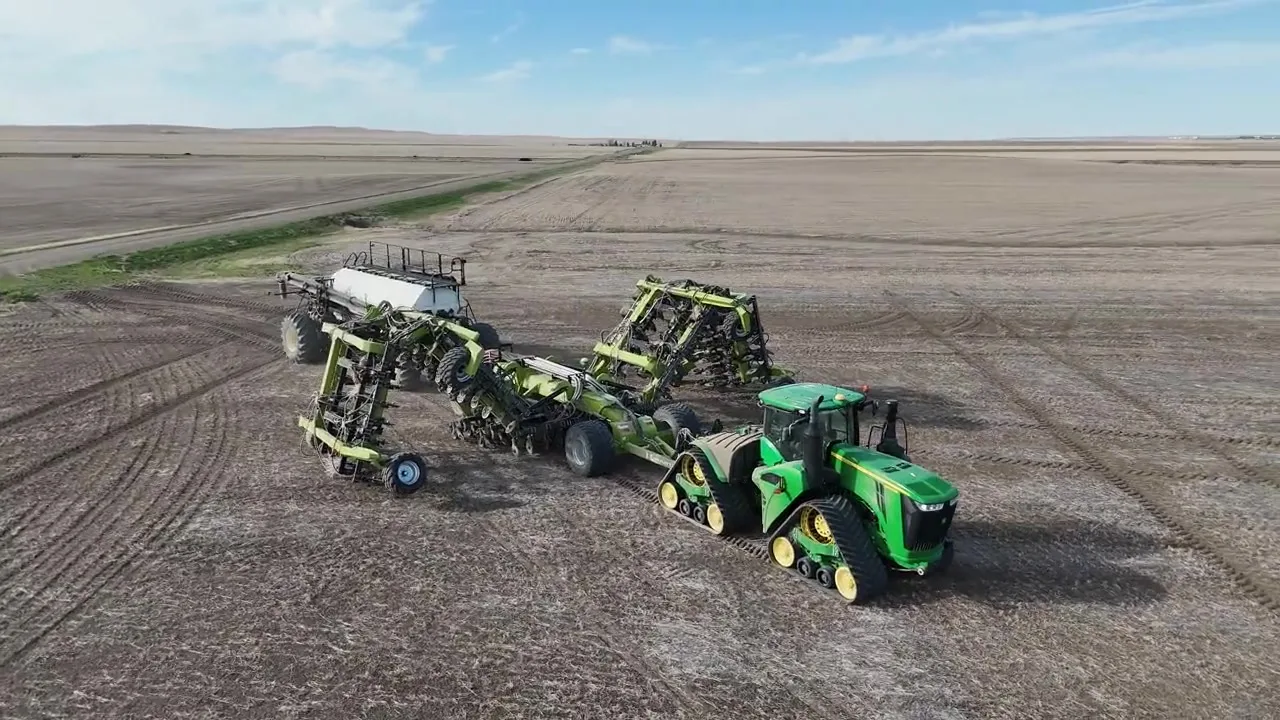

Narrower, Safer Transport Widths

Our patented, breakthrough, folding technology offers one of the narrowest transport widths on the market, for easier transportation and added safety.

Our 66′ and 60′ frames fold to 18′ 10″ wide – no wider than the duals on the air seeder cart. We even shaved 2′ off the width of the 76′ Spyder.

Exceptional Seed Placement

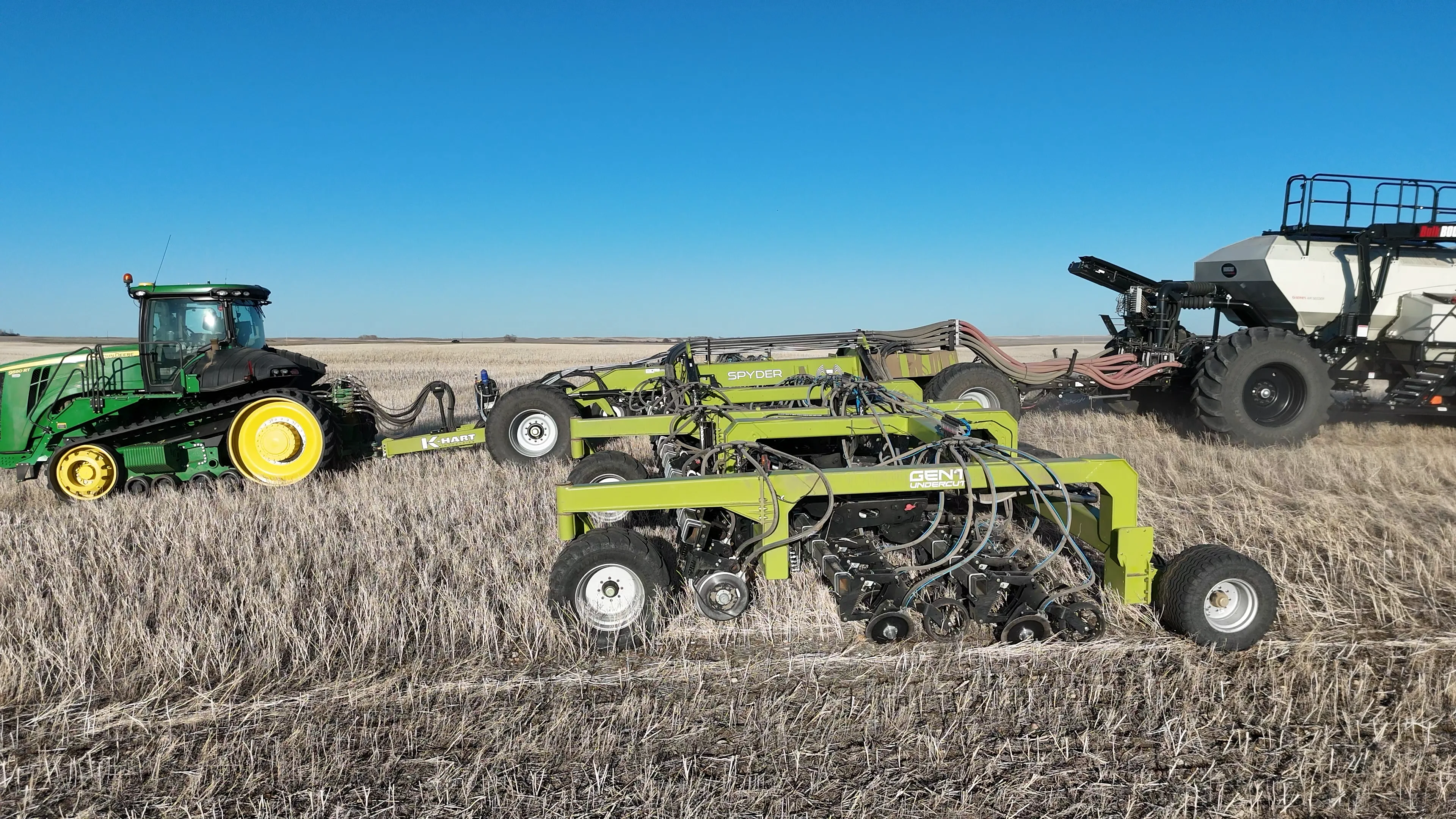

The Spyder is built with patented Gent undercut disc technology. These openers move extraordinarily little soil while slicing through the heaviest of residue – giving you the best seed placement available in a disc drill.

The Spyder is Tough

Massive steel tube construction ensures years of trouble-free durability. The Spyder is ready to work and built to last in the harshest of seeding conditions.

Opener Linkage

Our opener linkage allows the openers to work closely together while engaged in the soil to maintain consistent row spacing while providing industry-leading access to openers for setting and maintenance when lifted up. For 2022, the back row can be locked up to allow double-width seeding. The clear opener bar allows highly configurable row spacings from 7 ½″ to 12″. Inter Row Coulters are also available on their own lift system for independent depth control and so they can be out of the ground if not required – for seeding pulses, for example.

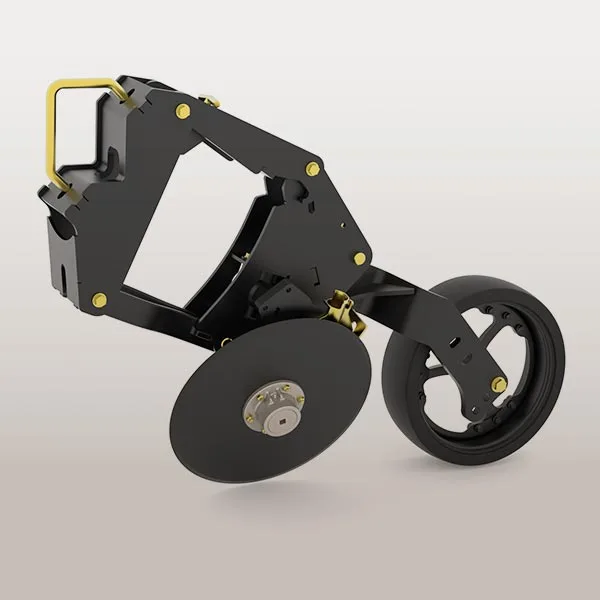

Openers

The Model 8620 Gent, double-disc para-link opener has significant enhancements in 2024. In addition to fuel and moisture savings from the proven low disturbance design, productivity gains from higher seeding speeds and superior ground following features, we’ve upgraded the seed boot, scraper and packer arm to dramatically improve performance in wet and tacky soil conditions.

Learn more

Features

Unparalleled Access

Our patented opener linkage provides industry-leading access to the openers for setting and maintenance while keeping the ranks close together during seeding for accurate row spacing.

Floatation

The Spyder drill comes standard with wide floatation tires to minimize soil compaction.

Clam Shell Linkage

Patented clam shell linkage arm technology ensures close row spacing when seeding – then lift and open up for ease of adjustments and serviceability.

Linkage design allows for seeding on both ranks or raise the back rank out of the soil and just seed on the front rank.

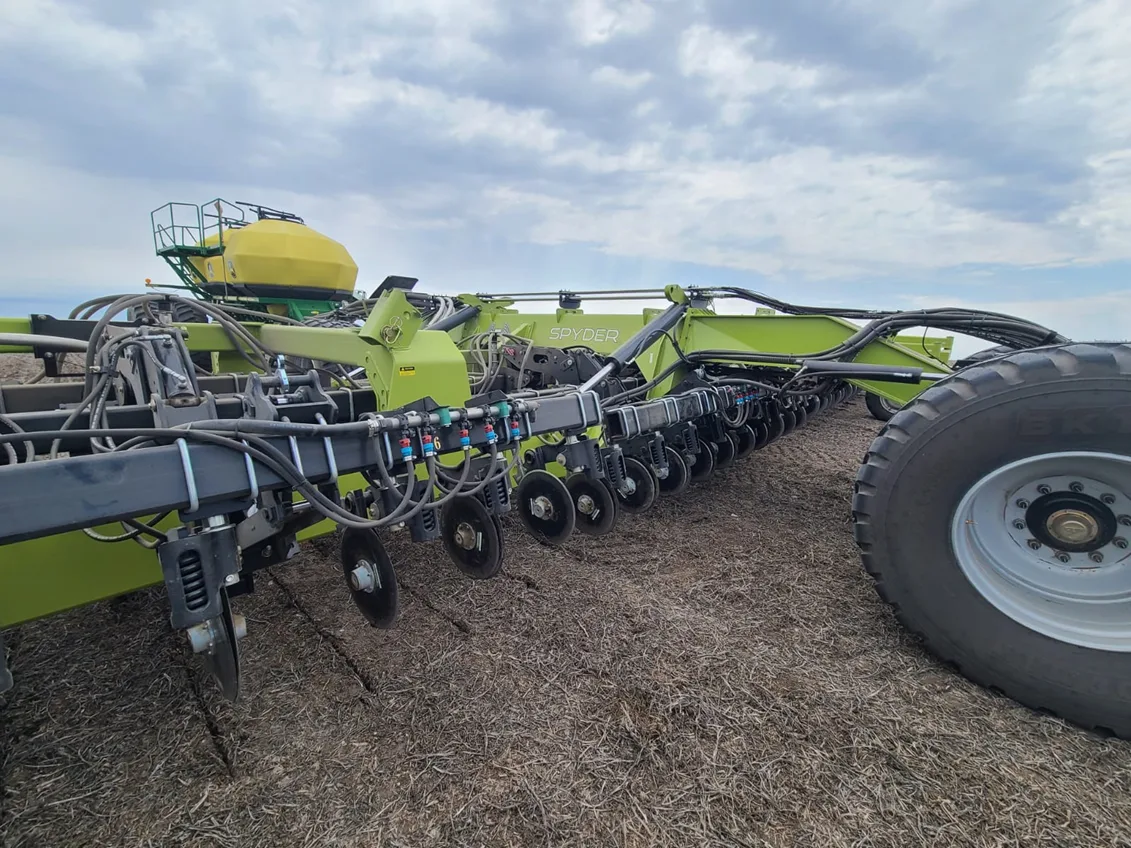

Coulters

Hydraulic lift out for inter-row fertilizer coulters when not required.

Testimonials

“We seeded into some very hard land that we purchased and needed better farming practices. The Spyder is part of these better practices, not only penetrating a thick residue layer without hair pinning, but also getting consistent depth placement. The crop came up fast and even.”

– James Meiger, Delia, Alberta

“The Spyder did an admirable job for us in 2020, seeding into some pretty challenging conditions in a wide range of crops. I was very pleased with the consistency of depth and placement from the 8612 opener and the lack of hair-pinning. Very impressive seeding tool with excellent product support.”

– Blake Bell, Killarney, MB.

“Compared to other drills, the Spyder leaves a nicer field finish with faster emergence. The frame is a simple design that doesn’t take huge hydraulics to run it and it has better serviceability. It’s great that I can buy parts at my local dealer.”

– Bartt Chute, Moose Jaw, Saskatchewan

“We like the simplicity of the drill, especially for us coming from a single disc to a double disc machine. It’s sort of the middle ground between a disc drill that gives you low disturbance, and a hoe that has nice placement and packing without overpacking. We really like it.”

– Kirby & Joel Basta, Glendive, Montana

Specifications

Model	S40	S40i	S60	S60i	S66	S66i	S74	S74i
Working width	40′		60′		66′		74′
Spacing	7.5″ to 12″
Transport width	18′ 8″		18′ 10″		18′ 10″		23′ 2″
Transport height	15′ 8″		15′ 9″		16′ 11″		18′
Weight (10″ spacing)	40,000 lbs	47,000 lbs	57,970 lbs	68,360 lbs	60,800 lbs	71,950 lbs	65,000 lbs	77,180 lbs

Specifications can vary depending on configuration.

Request a Quote

Vaderstad Air Carts

We’re pleased to announce Vaderstad Industries is providing a limited number of production air carts to pair with K-Hart Spyder disc drills for the 2025 season.

Our Spyder Drill is the first non-Vaderstad seeding tool approved to have Vaderstad’s cart sold as a stand alone.

K-Hart customers will be able to access pricing and availability for the 680, 820, and 1000 bushel carts through their local authorized Vaderstad dealers.

Spyder 40

KH-9

40′ Spyder (12.4 meters wide)

KH-7

40′ wide 7 ½” spacing with Model 8612 and inter-row fertilizer banders Model 1704’s

KH-6

40’ Spyder in transport 14′ 5″ (4.4 meters wide)

KH-5

40’ Spyder folding in for transport

40’ Spyder

40’ Spyder is equipped with Model 8612 Undercut technology on 7 ½” spacing and with inter-row fertilizer banders. Working at Altona, Manitoba, Canada.
